B
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
B
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
B
|
62779
|
Hardware for control panel, Genesis '11
|
|
B
|
67762
|
Hardware kit for bottom panel
|
|
B
|
88063
|
Hardware for tank blocker
|
|
A
|
54412
|
Owners guide, Genesis E/S 320/330 LP, UK, '12
|
|
B
|
62775
|
Hardware for cookbox, Genesis 300 series, '11
|
|
B
|
62778
|
Hardware for heat shield/side burner, Genesis '11
|
|
B
|
62781
|
Hardware for manifold, Genesis '11
|
|
B
|
78040
|
Hardware kit, Genesis 320/330 LP, export, '13
|
|
B
|
88206
|
Hardware for lid assembly
|
|
A
|
54367
|
Assembly guide, Genesis E/S 310/320, GB, '12
|
|
B
|
62774
|
Guide screws for burner tubes/grease tray rails screws
|
|
B
|
62777
|
Hardware for connectors, Genesis '11
|
|
B
|
62780
|
Hardware for bulkhead, Genesis '11
|
|
B
|
67765
|
Hardware for side burner table, Genesis
|
|
B
|
88066
|
Tank glide buttons and hardware, export
|
|

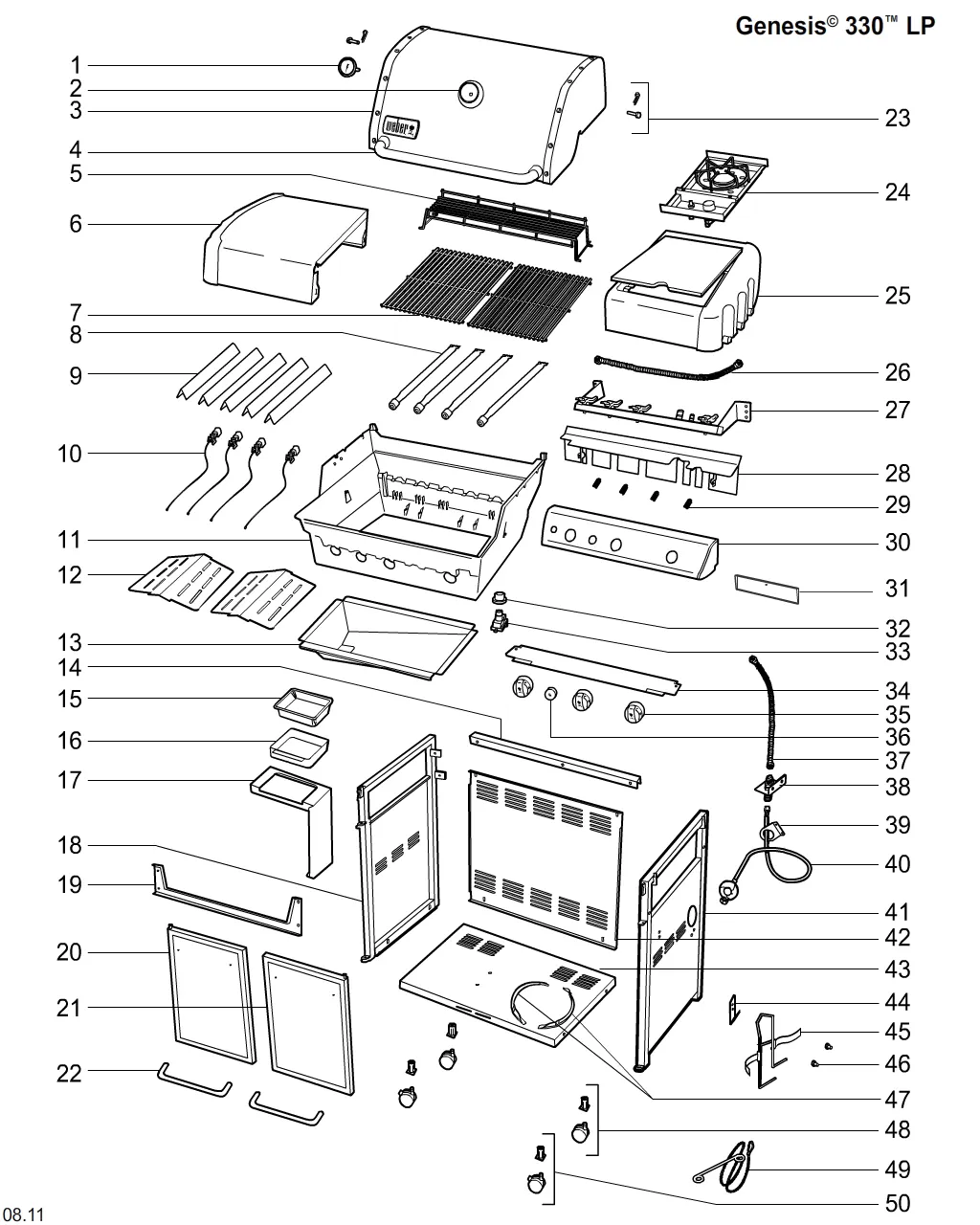

1
|
67089
|
Thermometer, C/F, Genesis II, export
|
|
2
|
67717
|
Bezel for Genesis/Summit, '07
|
|
3
|
66513
|
Logo plate, SS
|
|
3
|
68230
|
Lid assembly, Genesis 300 '11, SS
|
|
4
|
67718
|
Handle w/hardware, Genesis E/S 300 series
|
|
4
|
65908
|
Hardware pack for handle
|
|
5
|
65054
|
Warming rack, SS, Genesis 300 (2011-2016)
|
|
6
|
70052
|
LHS table assembly, Genesis '11, WE EU
|
|
6
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
7
|
82184
|
Grates for Genesis 2013, SS, rod-style
|
|
8
|
70058
|
Burner tube set, Genesis '11, 20/37/50 mb
|
|
8
|
62774
|
Guide screws for burner tubes/grease tray rails screws
|
|
8
|
70059
|
Burner tube, qty 1, Genesis '11, 20/37/50 mb
|
|
9
|
62784
|
Stainless steel flavorizer bar set (Qty 5), Genesis 300 series '11
|
|
9
|
7620
|
Stainless steel flavorizer bar set (Qty 5) Genesis 300 series '11
|
|
10
|
65946
|
Igniter kit, Genesis 330, '14
|
|
10
|
62754
|
Ignition electrode set, Genesis 330 '11
|
|
11
|
62755
|
Cookbox, Genesis 330, '11
|
|
11
|
62786
|
Grease tray rails (set)
|
|
11
|
62775
|
Hardware for cookbox, Genesis 300 series, '11
|
|
12
|
65505
|
Heat deflectors (set of 2) stainless steel
|
|
13
|
62757
|
Grease tray, Genesis '11, black
|
|
14
|
67844
|
Rear frame connector, Genesis '08
|
|
14
|
62777
|
Hardware for connectors, Genesis '11
|
|
15
|
6415
|
Aluminum drip pans - small (10 pack)
|
|
16
|
93305
|
Aluminum catch pan kit
|
|
17
|
62771
|
Tank blocker, Genesis '11
|
|
17
|
88063
|
Hardware for tank blocker
|
|
18
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
18
|
62758
|
LHS frame, Genesis '11
|
|
18
|
70332
|
Adjustable door hinge
|
|
19
|
62777
|
Hardware for connectors, Genesis '11
|
|
19
|
62760
|
Front connector frame, Genesis '11
|
|
20
|
62045
|
LHS door assembly, SS, Genesis '11, EU
|
|
20
|
61454
|
Door assembly kit, Genesis '11, SS, export
|
|
21
|
61454
|
Door assembly kit, Genesis '11, SS, export
|
|
21
|
62043
|
RHS door assembly, SS, Genesis '11
|
|
22
|
88082
|
Door handle w/hardware '07-'08
|
|
23
|
88206
|
Hardware for lid assembly
|
|
24
|
67778
|
LP side burner assembly, 37mb, Genesis '07
|
|
24
|
91174
|
Ignition assembly for side burner
|
|
24
|
91173
|
Side burner ring
|
|
24
|
81252
|
Rubber lid bumper for side burner (Qty 1)
|
|
24
|
30130201
|
Control knob for side burner, gray.
|
|
24
|
67765
|
Hardware for side burner table, Genesis
|
|
24
|
65506
|
Trivet for side burner, SS
|
|
25
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
25
|
62751
|
Side burner table assembly, Genesis '11
|
|
25
|
67764
|
Hinge rod and clip for side burner lid, Genesis '07
|
|
25
|
66463
|
Side burner lid w/hardware, Summit '17
|
|
26
|
62761
|
Side burner gas line w/fitting, Genesis '11
|
|
27
|
70077
|
LP Manifold assembly, Genesis 330, '11, 37 mb
|
|
27
|
62781
|
Hardware for manifold, Genesis '11
|
|
28
|
62778
|
Hardware for heat shield/side burner, Genesis '11
|
|
28
|
65085
|
Rain/heat shield, Genesis '14
|
|
29
|
65084
|
Wire clips w/hardware, Genesis
|
|
30
|
62779
|
Hardware for control panel, Genesis '11
|
|
30
|
65504
|
Control panel hardware '15
|
|
30
|
65503
|
Control panel, Genesis 330, Export
|
|
30
|
64802
|
Control panel, Genesis 330, '11, Export
|
|
31
|
62765
|
Heat shield for cookbox, Genesis '11
|
|
32
|
66836
|
Igniter button w/hardware
|
|
33
|
88826
|
Igniter module, Genesis '11
|
|
34
|
62779
|
Hardware for control panel, Genesis '11
|
|
34
|
62766
|
Control panel bottom (wind deflector), Genesis '11
|
|
35
|
89042
|
Main control knob kit, Genesis 300 - export
|
|
36
|
40255404
|
Sear knob assembly, light gray, Genesis Export
|
|
37
|
62772
|
Corrugated main gas line, Genesis '11, SS
|
|
38
|
62780
|
Hardware for bulkhead, Genesis '11
|
|
38
|
70082
|
Bulkhead assembly, Genesis '11, Export, 1/4
|
|
39
|
91470
|
LP hose and regulator 37 mb, 90 cm, UK
|
|
39
|
67872
|
Bracket for hose, Genesis '09
|
|
40
|
91470
|
LP hose and regulator 37 mb, 90 cm, UK
|
|
41
|
69993
|
RHS frame assembly, LP, Genesis, export '14
|
|
41
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
41
|
70332
|
Adjustable door hinge
|
|
42
|
67755
|
Rear panel with hardware
|
|
42
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
42
|
91357
|
Door magnet
|
|
42
|
67762
|
Hardware kit for bottom panel
|
|
43
|
82792
|
Bottom panel, Genesis 300 NG, '09
|
|
44
|
70063
|
Tank hanger assembly w/bracket, Genesis - export
|
|
45
|
70063
|
Tank hanger assembly w/bracket, Genesis - export
|
|
46
|
88066
|
Tank glide buttons and hardware, export
|
|
47
|
91414
|
Tank brackets (snap-in) Spirit '09, export
|
|
48
|
79499
|
Caster w/out lock, Genesis (2012-2016), Summit (2012-2019)
|
|
48
|
70359
|
Caster w/o lock, Spirit ('09-'12), Genesis/Summit ('07-'11) qty 1
|
|
49
|
81544
|
Match holder
|
|
50
|
79500
|
Locking caster, Genesis (2012-2016), Summit (2012-2019)
|
|
50
|
70360
|
Locking caster, Spirit ('09-'12), Genesis ('07-'11) Summit ('07-'11) qty 1
|
