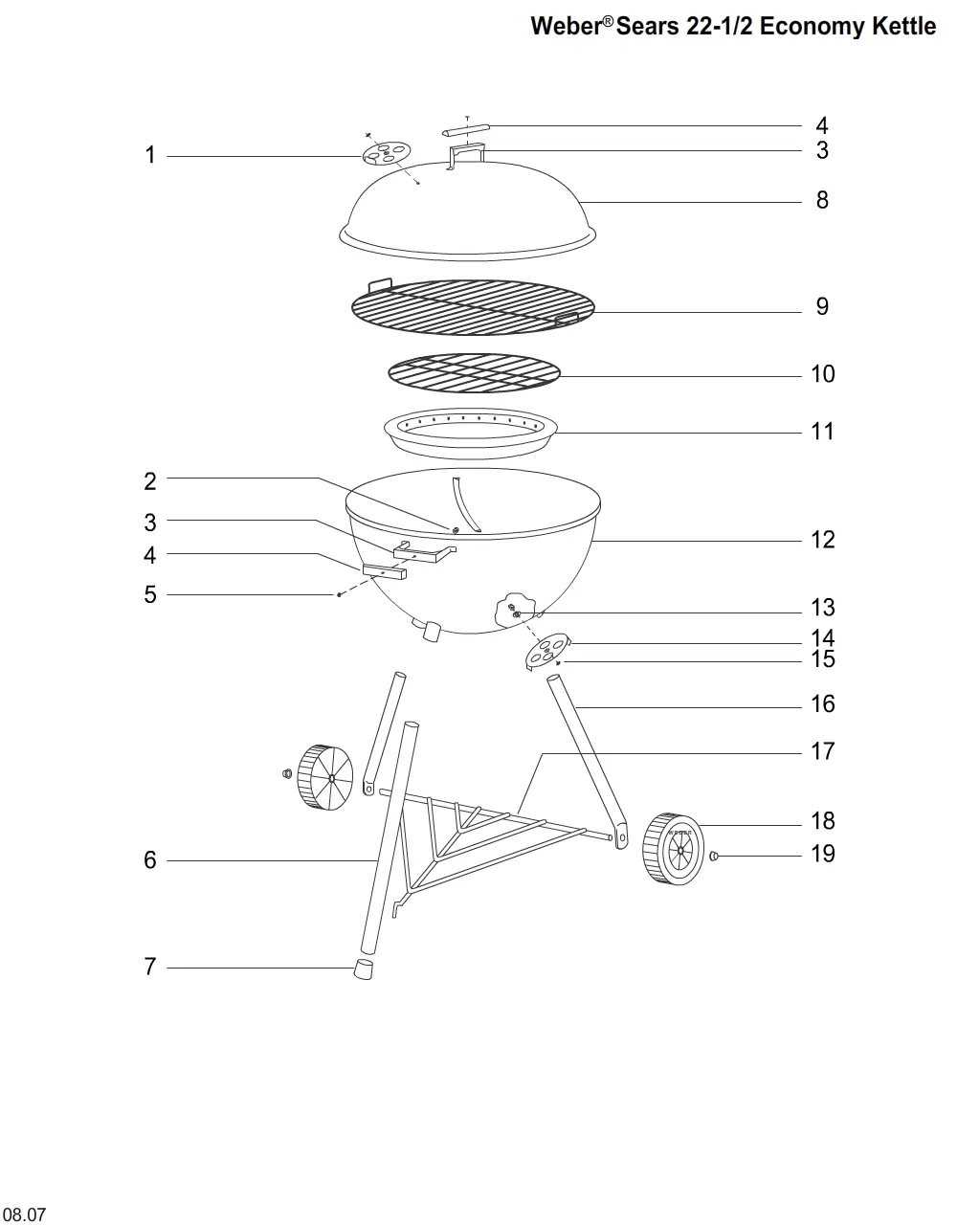

  • Schematic Image 1343
  • Sears Economy Kettle 22.5 (USA)
  • 1343

Additional Parts

Documents Print Search Again
Seq Part # Description Available Online
B 80605 Hardware pack for charcoal grills, Hubcaps and legcap
2 87505 Acorn nut 1/4-20 inch
3 80671 Lid/ Bowl Handle Shop Now$15.99
4 80671 Lid/ Bowl Handle Shop Now$15.99
5 80671 Lid/ Bowl Handle Shop Now$15.99
6 65130 Leg Parts Shop Now$51.99
7 87201 Leg cap tube, white
8 65174 Lid assembly, 22.5" One-Touch Silver/Gold, black '15
9 80630 Cooking Grates
10 65947 Charcoal grate for 22" kettle Shop Now$19.99
13 87605 Flat washer 1/4 inch
14 63016 Damper kit, 22.5" Bar-B-Kettle & Smokey Mountain Cooker, Bowl
15 87401 Screw 1/4-20 x 5/8" slotted truss head, zinc
16 65130 Leg Parts Shop Now$51.99
17 80695 Triangle Leg Support Shop Now$37.99
18 65436 6" Wheel, (set of 2)
19 987101 Replacement hubcaps (pack of 3)
470 80605 Hardware pack for charcoal grills, Hubcaps and legcap
480 80671 Lid/ Bowl Handle Shop Now$15.99
510 2290 Rotisserie for 22.5 Shop Now$199.99
510 7401 Tool Hooks Shop Now$10.99
510 21301 Condiment holder. Fits all 22-1/2 inch charcoal kettles.
510 7149 Premium Grill Cover
510 7176 Grill Cover Shop Now$19.99
510 8411 Slide-Aside Lid Holder
510 7403 Char-Baskets Shop Now$19.99
